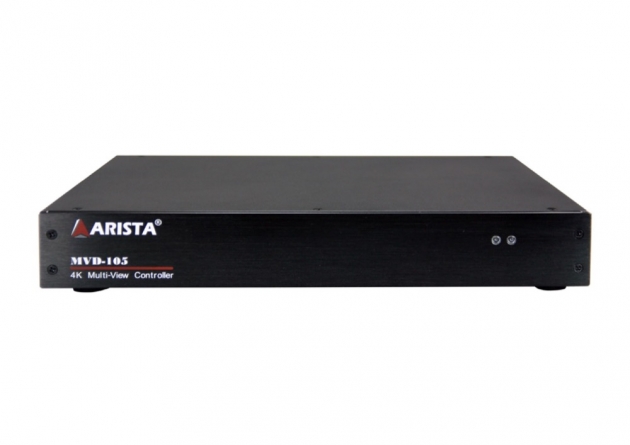

MVD-105
2U 19" Rack Mount, Quad Video Inputs, Single HDMI 2.0 Output
Download file
-
- VESA mount 42" 1920 x 1080 FHD TFT display.
- Tempered glass protection or resistive touch option available.
- Four mix-signal channels of video input.
- Accepts digital DVI, HDMI and analog VGA, CVBS and YPbPr video signals.
- HDMI output for clone display.
- Audio input jack for each channel
- Integrated USB KVM
- Audio output iack for external speakers
- RS-232 port for Control Console or Control Software interface
- IR receiver for IR Remote Control
- Quad View, Picture in Picture, Picture on Picture.
-
- 2U 19" Rack Mount form factor
- Four mix-signal channels of video input
- Accepts HDMI 1.4b video signals
- HDMI 2.0 output display port for external LCD display or projector
- Integrated USB KVM
- Audio output jack for external speakers.
- RS-232 port for Control Console, Control Software interface orEthernet 10/100/1000 BASET
- IR receiver for IR Remote Control
- Quad View, Picture in Picture, Picture on Picture
-
Model Name MVD-105 PRODUCT SPECIFICATIONS Technical Information Signal input type Analog Video: N/A
Digital Video: HDMI 1.4b
USB
RS-232Display channel Ch1, Ch2, Ch3, Ch4 Display mode Quad
Full screen
PIP
POPOperation Through MVD-108 control box via RS-232
Remote control
Software control

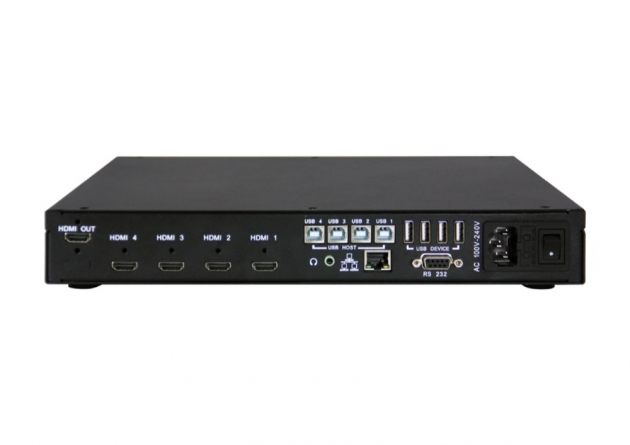

Ethernet 10/100/1000 BASETI/O connectors, Buttons Inputs 4 x HDMI 1.4b,
1 x RS-232,
4 x USB Type BOutputs 1 x HDMI 2.0,
1 x Audio,
1 x Remote Control IR receiver,
4 x USB Type APower/Thermal Specs Power Requirement 100-240VAC Power Consumption 15W Recommended Power
Supply22W Heat Dissipation 52 BTU/hr Physical Information Mounting Rack Mount Net Weight 10.82 Lbs / 2.01 Kg Physical Dimension
(W x H x D)12.60 x 2.02 x 10.13 inch
320.0 x 51.3 x 257.3 mmEnvironmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 5~95% -
Ordering Information MVD-105-000 MVD-105-001 Input Interface Keyboard Mouse Emulator USB Switch -
Packing List
Item:CB002

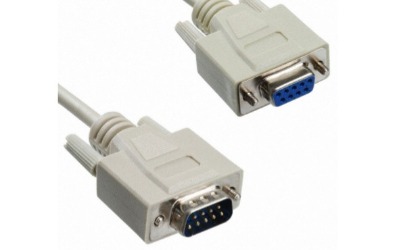

Description:6 Feet M-F Serial Touch Cable
QTY:1
Item:CB03

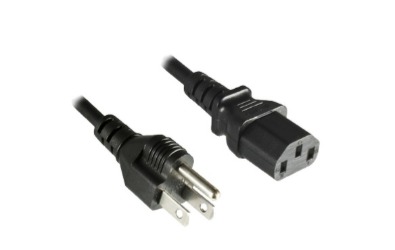

Description:6 Feet US Power Cord
QTY:1
-
Description
- VESA mount 42" 1920 x 1080 FHD TFT display.
- Tempered glass protection or resistive touch option available.
- Four mix-signal channels of video input.
- Accepts digital DVI, HDMI and analog VGA, CVBS and YPbPr video signals.
- HDMI output for clone display.
- Audio input jack for each channel
- Integrated USB KVM
- Audio output iack for external speakers
- RS-232 port for Control Console or Control Software interface
- IR receiver for IR Remote Control
- Quad View, Picture in Picture, Picture on Picture.
-
Features
- 2U 19" Rack Mount form factor
- Four mix-signal channels of video input
- Accepts HDMI 1.4b video signals
- HDMI 2.0 output display port for external LCD display or projector
- Integrated USB KVM
- Audio output jack for external speakers.
- RS-232 port for Control Console, Control Software interface orEthernet 10/100/1000 BASET
- IR receiver for IR Remote Control
- Quad View, Picture in Picture, Picture on Picture
-
Technical Spe.
Model Name MVD-105 PRODUCT SPECIFICATIONS Technical Information Signal input type Analog Video: N/A
Digital Video: HDMI 1.4b
USB
RS-232Display channel Ch1, Ch2, Ch3, Ch4 Display mode Quad
Full screen
PIP
POPOperation Through MVD-108 control box via RS-232
Remote control
Software control
Ethernet 10/100/1000 BASETI/O connectors, Buttons Inputs 4 x HDMI 1.4b,
1 x RS-232,
4 x USB Type BOutputs 1 x HDMI 2.0,
1 x Audio,
1 x Remote Control IR receiver,
4 x USB Type APower/Thermal Specs Power Requirement 100-240VAC Power Consumption 15W Recommended Power
Supply22W Heat Dissipation 52 BTU/hr Physical Information Mounting Rack Mount Net Weight 10.82 Lbs / 2.01 Kg Physical Dimension
(W x H x D)12.60 x 2.02 x 10.13 inch
320.0 x 51.3 x 257.3 mmEnvironmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 5~95% -
Ordering Info.
Ordering Information MVD-105-000 MVD-105-001 Input Interface Keyboard Mouse Emulator USB Switch -
Accessories
Packing List
Item:CB002
Description:6 Feet M-F Serial Touch Cable
QTY:1
Item:CB03
Description:6 Feet US Power Cord
QTY:1
