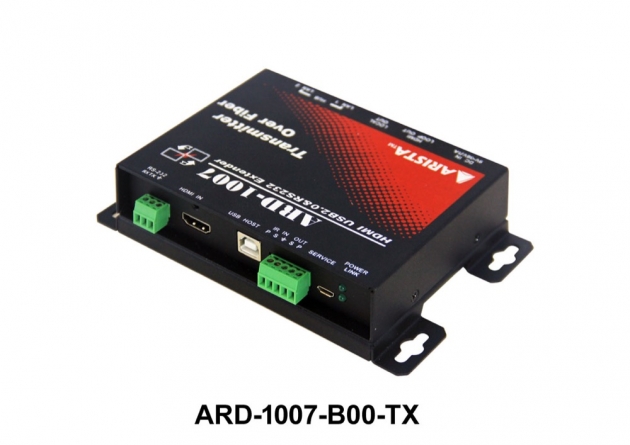

ARD-1007-B00-TX

4K KVM Extender HDMI Digital Extender up to 330 feet (100m)

Download file

Arista's KVM Extender products family, ARD-1007-B00 is designed based on HDBaseT for HDMI transmission up to 10,0000 feet (3048 meters) over optical cable with Ethernet pass through, RS-232, USB and IR control, plus Power over Ethernet. The product transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. Additionally, the product extends Ethernet, RS-232, USB and IR control. The product is HDCP 2.2 compliant and supports EDID communication. The product provides integrator-friendly features including: IEEE standards-based PoE transmission for safety and compatibility; HDCP 2.2 compliant for meeting the latest copy protection requirements.
- Extends uncompressed HDMI video signal up to 10,000ft (3048m) at 4K (UHD 3840 x 2160) resolution via Fiber cable.
- Multi-Mode/Single Mode FSP options
- HDBaseT 5Play extends audio, video, control, Ethernet, and power over optical cable.
- HDMI Loopback on Transmitter to view and monitor local video source
- Receiver provides 4-Port USB 2.0 hub
- HDCP 2.2 compliant and support EDID

Model Name	ARD-1007-B00
PRODUCT SPECIFICATIONS
Technical	ARD-1007-B00-TX	ARD-1007-B00-RX
Role of Usage	Transmitter (TX)	Receiver (RX)
Video Bandwidth	350MHz
Video resolution	Up to 3840 x 2160
Transmission	Optical fiber cable
Extension signal	Video, Audio, remote control, touch control, keyboard/mouse, Ethernet, Power
RS-232 Signal Type	Full-duplex & baud rate
Input video signal	1.2 Volts [peak-to-peak]
Loop-Back	1 x HDMI Loop-Back at TX
ESD Protection	[1] Human body model — ±15kV [air-gap discharge] and ±8kV [contact discharge] [2] Core chipset — ±8kV
PCB Stack-up	6-layer board [impedance control — differential 100Ω; single 50Ω]
I/O Communication
Input	1 x HDMI 2.0, 1 x USB 1 x RS-232,1 x IR, 1 x 9~36V DC	1 x Optical Port, 1 x 9~36V DC
Output	1 x Optical Port, 1 x HDMI 2.0	1 x HDMI 2.0, 1 x RS-232, 4 x USB, 1 x IR, 1 x 12V DC
Ethernet Hub	2 x LAN	2 x LAN
HDMI connector	HDMI female
RS-232 connector	Terminal Block 3 Pin
Keyboard and mouse connector	USB Type A
USB connector	USB Type A (ARD-1007-B00-RX), USB Type B (ARD-1007-B00-TX)
Physical Information
Mounting	Wall mount or DIN-RAIL mount
Physical Dimension (W x H x D)	6.19 x 1.45 x 4.04 inch 157 x 37 x 103 mm
Power/Thermal Specs
Power supply	9~36V DC Power input
Environmental
Operation Temperature	0~50°C (32~122°F))
Storage Temperature	-20~60°C (-4~140°F)
Relative Humidity	0~95%

Ordering Information ARD-1007-B00-KT

SFP* *Arista does not provide or sell SFP.
Use 1 Gbit/s SFP for 1,000' length. Use 10 Gbit/s SFP for 10,000' length.
Packing List

FSP060-DBAE

60W AC Power Adapter

QTY：2

CB003

6 Feet US Power Cord

QTY：2

CB011
6 Feet M-M A-B USB 2.0 Touch Cable

QTY：1

CA521
6 FEET M-M HDMI Cable with M3 Lock Screw.

QTY：1

CA529

6 FEET M-M HDMI to DVI Cable

QTY：1

Description

Arista's KVM Extender products family, ARD-1007-B00 is designed based on HDBaseT for HDMI transmission up to 10,0000 feet (3048 meters) over optical cable with Ethernet pass through, RS-232, USB and IR control, plus Power over Ethernet. The product transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. Additionally, the product extends Ethernet, RS-232, USB and IR control. The product is HDCP 2.2 compliant and supports EDID communication. The product provides integrator-friendly features including: IEEE standards-based PoE transmission for safety and compatibility; HDCP 2.2 compliant for meeting the latest copy protection requirements.
Features
- Extends uncompressed HDMI video signal up to 10,000ft (3048m) at 4K (UHD 3840 x 2160) resolution via Fiber cable.
- Multi-Mode/Single Mode FSP options
- HDBaseT 5Play extends audio, video, control, Ethernet, and power over optical cable.
- HDMI Loopback on Transmitter to view and monitor local video source
- Receiver provides 4-Port USB 2.0 hub
- HDCP 2.2 compliant and support EDID

Technical Spe.

Model Name	ARD-1007-B00
PRODUCT SPECIFICATIONS
Technical	ARD-1007-B00-TX	ARD-1007-B00-RX
Role of Usage	Transmitter (TX)	Receiver (RX)
Video Bandwidth	350MHz
Video resolution	Up to 3840 x 2160
Transmission	Optical fiber cable
Extension signal	Video, Audio, remote control, touch control, keyboard/mouse, Ethernet, Power
RS-232 Signal Type	Full-duplex & baud rate
Input video signal	1.2 Volts [peak-to-peak]
Loop-Back	1 x HDMI Loop-Back at TX
ESD Protection	[1] Human body model — ±15kV [air-gap discharge] and ±8kV [contact discharge] [2] Core chipset — ±8kV
PCB Stack-up	6-layer board [impedance control — differential 100Ω; single 50Ω]
I/O Communication
Input	1 x HDMI 2.0, 1 x USB 1 x RS-232,1 x IR, 1 x 9~36V DC	1 x Optical Port, 1 x 9~36V DC
Output	1 x Optical Port, 1 x HDMI 2.0	1 x HDMI 2.0, 1 x RS-232, 4 x USB, 1 x IR, 1 x 12V DC
Ethernet Hub	2 x LAN	2 x LAN
HDMI connector	HDMI female
RS-232 connector	Terminal Block 3 Pin
Keyboard and mouse connector	USB Type A
USB connector	USB Type A (ARD-1007-B00-RX), USB Type B (ARD-1007-B00-TX)
Physical Information
Mounting	Wall mount or DIN-RAIL mount
Physical Dimension (W x H x D)	6.19 x 1.45 x 4.04 inch 157 x 37 x 103 mm
Power/Thermal Specs
Power supply	9~36V DC Power input
Environmental
Operation Temperature	0~50°C (32~122°F))
Storage Temperature	-20~60°C (-4~140°F)
Relative Humidity	0~95%

Recommended browser：Chrome, Firefox, Safari latest version.

256 bit SSL Encryption

Packing List

Ordering Information	ARD-1007-B00-KT
SFP*	*Arista does not provide or sell SFP. Use 1 Gbit/s SFP for 1,000' length. Use 10 Gbit/s SFP for 10,000' length.
