RS-123
The RS-123 1RU Rack Mount - HDBaseT Transmitter + Computer / Receiver + Splitter
Download file
-

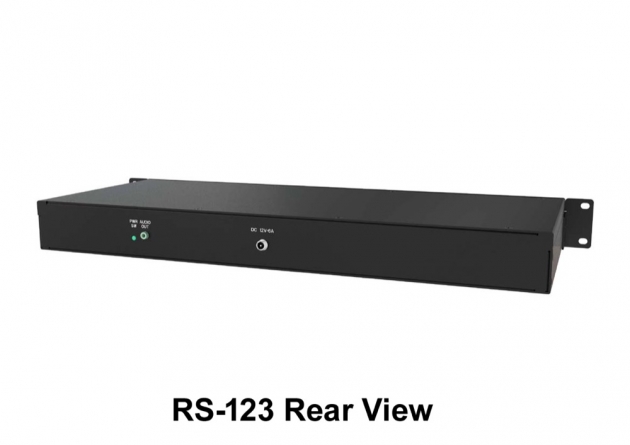

The RS-123 is a 19" 1RU rack mount chassis that can house two modules and are inter-connected which provides a different functionality compared to the RS-122. The RS-123 offers two set of configurations:
The first configuration is transmitter (ARD-1006-A07-TX) + computer (MicroBox-1100A-E01). With the HDBaseT 2.0 transmitter and computer installed in RS-123, the computer display can be extended up to 330 feet away. The AV over IP transmitter (ARD-1006-A31-TX) and computer (MicroBox-1100A-E01) can be used to switch the computer display to different LCD monitors. If further than 330 feet distance is required, the ARD-1006-B31-TX with fiber interface is an option.
The second configuration is receiver (ARD-1006-A07-RX) + splitter (AMP-1006-S04). With the HDBaseT 2.0 receiver and splitter installed in the RS-123, it gives you the ability to display remote video signal to multiple LCD monitors. And with the AV over IP receiver (ARD-1006-A31-RX) and splitter (AMP-1006-S04) installed, it gives the ability to display selected video source from multiple video sources to multiple LCD monitors. If further than 330 feet distance is required, ARD-1006-B31-RX with fiber interface can be used. -
- Standard 1RU height, 7" in depth 19" rack mount
- Computer and KVM extender all in one unit
- Extends computer's HDMI video, RS-232, USB signals to remote location
- Eliminates cables connection between transmitter and computer for quick deployment of event controller
- Swappable modular design providing maximum flexibility of configuration to fit highly dynamic event requirements
- Swappable modular design to obtain minimum maintenance and upgrade efforts requirement
- HDBaseT transmitter supports PoE to power the receiver unit at remote location
- Computer module is equipped with 1.9GHz E3845 Quad-Core Atom CPU, up to 8GB DDR-3 memory
-
Model Name RS-123_Computer_Extender PRODUCT SPECIFICATIONS Plug-in Slot A B Role of Usage Transmitter (TX) Computer RS-123-E01-A07 ARD-1006-A07-TX MicroBox-1100A-E01 RS-123-E01-A31 ARD-1006-A31-TX MicroBox-1100A-E01 RS-123-E01-B31 ARD-1006-B31-TX MicroBox-1100A-E01 Video resolution Up to 3840 x 2160 Transmission Cat5e/Cat6 cable | Fiber Extension signal Video, Audio, remote control, touch control, keyboard/mouse, Ethernet, Power RS-232 Signal Type Full-duplex & baud rate Input video signal 1.2 Volts [peak-to-peak] Loop-Back 1 x HDMI Loop-Back at TX ESD Protection [1] Human body model — ±15kV [air-gap discharge] and ±8kV [contact discharge]
[2] Core chipset — ±8kVPCB Stack-up 6-layer board [impedance control — differential 100Ω; single 50Ω] I/O Communication Input 1 x HDMI 2.0, 1 x USB
1 x RS-232, 1 x IR, 1 x 48V DC1 x Remote IN (PSE) Output 1 x Local out (PSE), 1 x HDMI 2.0 1 x HDMI 2.0, 1 x RS-232
4 x USB, 1 x IREthernet Hub 2 x LAN HDMI connector HDMI female RS-232 connector DB-9 Keyboard and mouse connector USB Type A USB connector USB Type A (RS-121-31-RX), USB Type B (RS-121-31-TX) Physical Information Mounting Wall Mount or Rack Mount Physical Dimension
(W x H x D)18.87x 1.73 x 6.96 inch
479.3 x 44.0 x 176.7 mm Rack MountPower/Thermal Specs Power supply 12V DC Power input Environmental Operation Temperature 0~50°C (32~122°F)) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% -
Part #: RS-123 Please contact Arista sales representative for more information Telephone: +1-510-226-1800 Email: sales@goarista.com -
Part #: RS-123_Computer_Extender Please contact Arista sales representative for more information Telephone: +1-510-226-1800 Email: sales@goarista.com
-
