MVD-104

2U 19

Download file

Arista MVD-104 is a multi-functional video processor which includes Quad Windows Multiviewer, 2 x 2 Video Wall Controller and 4-Port USB Switch. Quad Windows Multiviewer function displays four video windows simultaneously from four different video sources or computers on single LCD monitor.
- 2U 19" Rack Mount form factor

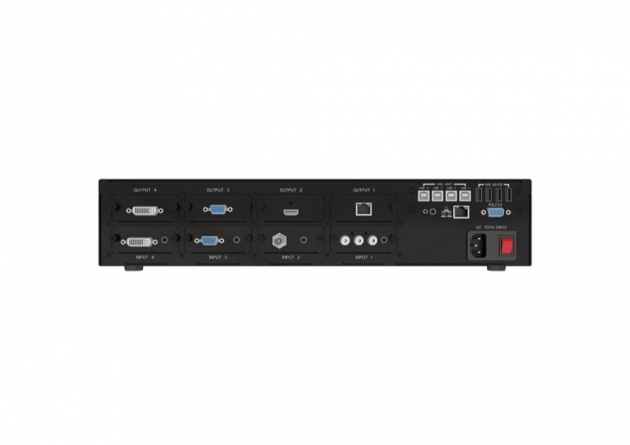

- Four swappable video input modules;Four swappable video output modules
- DVI, HDMI, VGA, SDI, CVBS, YPbPr video input module options available
- HDMI Extender video input module options available for remote video source
- DVI, HDMI, VGA, SDI video output module options available
- HDMI Extender video output module option available for remote LCD display or projector
- Audio input jack for each channel
- Integrated USB KVM
- Audio output jack for external speakers
- RS-232 port for Control Console or Control Software interface
- IR receiver for IR Remote Control
- Quad View, Picture in Picture, Picture on Picture

Model Name	MVD-104
PRODUCT SPECIFICATIONS
Technical Information
Signal input type	Analog Video: CVBS, YPbPr Digital Video: DVI, VGA, HDMI Audio USB RS-232
Display channel	Ch1, Ch2, Ch3, Ch4
Display mode	Quad Full screen PIP POP
Operation	Through MVD-108 control box via RS-232 Remote control Software control
I/O connectors, Buttons
Inputs	4 x Input modules, Available input module: DVI with audio, VGA with audio, HDMI, SDI, YPbPr with audio, CVBS with audio, RJ-45, 1 x RJ-45, 1 x RS-232, 4 x USB Type B
Outputs	4 x Output modules, Available input module: DVI, VGA, HDMI, SDI, RJ-45, 1 x Remote Control IR receiver, 1 x Audio 4 x USB Type A
Power/Thermal Specs
Power Requirement	100-240VAC
Power Consumption
Recommended Power Supply
Heat Dissipation
Physical Information
Mounting	Rack Mount
Net Weight
Physical Dimension	19 x 3.5 x 12.7 inch 482 x 89 x 322 mm
Environmental
Operating Temperature	0~50°C (32~122°F)
Storage Temperature	-20~60°C (-4~140°F)
Relative Humidity	5~95%

Ordering Information	MVD-104
Please contact Arista sales representitive for more information
Telephone:	+1-510-226-1800
Email:	sales.team@goarista.com

Part #: MVD-104

Please contact Arista sales representative for more information

Telephone: +1-510-226-1800

Email: sales@aristaproav.com
